The first true presence detector
Melihat ke depan mengikuti melihat ke atas. true presence® dikembangkan untuk menjadi detektor kehadiran sejati yang pertama. Ini dengan andal menunjukkan apakah seseorang ada di dalam ruangan atau tidak. Ini berarti deteksi ketidakhadiran yang andal dapat dilakukan untuk pertama kalinya. Informasi ini memungkinkan pengaktifan dan penonaktifan pencahayaan yang andal tanpa perlu waktu ON dan tanpa pemborosan listrik. Pengetahuan terperinci tentang kehadiran dan ketidakhadiran menghasilkan banyak aplikasi lain yang bisa sangat berharga untuk manajemen gedung. Ini menetapkan standar baru dalam otomatisasi bangunan tingkat lanjut.
Quick overview
| Application, place | Indoors, Outdoors |
| Installation | Surface wiring |
| Product category | Motion detector |
| Detection angle | 180 ° |
| Reach, tangential | r = 5 m (39 m²) / r = 12 m (226 m²) |
| Mounting height max. | 4,00 m |
| Interconnection via | Cable |
high frequency sensor 360°
Movement Ø 15 m
Presence Ø 15 m
True Presence Ø 9 m
brightness
max. 2000 W
2 – 12 m
2 – 2000 lux
5 sec – 60 min
Product Detail
UV-resistant plastic
Digital high frequency sensor

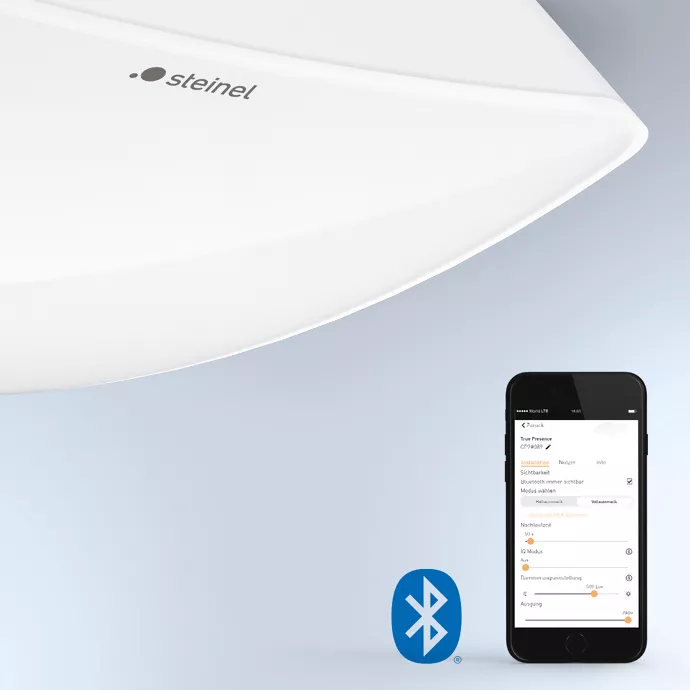

Interconnectable and adjustable via Bluetooth
Specifications
| General | |
| Detection angle | 360 ° |
| Angle of aperture | 160 ° |
| Transmitter power | < 1 mW |
| Dimensions (L x W x H) | 50 x 103 x 103 mm |
| With motion detector | Yes |
| Manufacturer’s Warranty | 5 years |
| Settings via | Bluetooth |
| With remote control | No |
| Version | COM2 – concealed white |
| PU1, EAN | 4007841057947 |
| Type | Presence detector |
| Application, place | Indoors |
| Application, room | classroom, lecture hall, one-person office, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, hotel room, care room, duty room, recreation room, dining hall / staff restaurant, changing room, kitchenette, sports hall, reception / lobby, WC / washroom, warehouse, Indoors |
| Colour | white |
| Colour, RAL | 9003 |
| Fixation/ mounting | |
| Includes corner wall mount | No |
| Installation site | ceiling |
| Installation | Concealed wiring, Ceiling |
| Housing | |
| IP-rating | IP20 |
| Ambient temperature | -20 – 50 °C |
| Material | Plastic |
| Electrical equipement | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, resistive | 2000 W |
| Switching output 1, number of LEDs / fluorescent lamps | 8 stk. |
| Switching output 1, floating | No |
| Switching output 2, resistive | 230 W |
| Switching output 2, floating | Yes |
| Fluorescent lamps, electronic ballast | 1500 W |
| Fluorescent lamps, uncorrected | 1000 VA |
| Fluorescent lamps, series-corrected | 400 VA |
| Fluorescent lamps, parallel-corrected | 1000 VA |
| Switching output 1, low-voltage halogen lamps | 2000 VA |
| LED lamps < 2 W | 100 W |
| LED lamps > 2 W < 8 W | 300 W |
| LED lamps > 8 W | 600 W |
| Capacitive load in μF | 176 µF |
| Power consumption | 1 W |
| Sensor technology | |
| Technology, sensors | High frequency, Light sensor |
| Mounting height | 2,00 – 12,00 m |
| Mounting height max. | 12,00 m |
| Optimum mounting height | 2,8 m |
| Montagehöhe max. True Presence Erfassung | 4,00 m |
| HF-system | 7,2 GHz |
| Detection | also through glass, wood and stud walls |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | No |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | Ø 15 m (177 m²) |
| Reach, tangential | Ø 15 m (177 m²) |
| Reach, presence | Ø 15 m (177 m²) |
| True Presence reach | Ø 9 m (64 m²) |
| Functions | |
| Functions | Group parameterisation, Semi-/fully automatic, Lighting scenario, Manual ON / ON-OFF, Neighbouring group function, Normal / test mode |
| Twilight setting | 2 – 2000 lx |
| Time setting | 20 s – 60 Min. |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | Yes |
| Constant-lighting control | No |
| Connection | |
| Interconnection | Yes |
| Type of interconnection | Master/master, Master/slave |
| Interconnection via | Bluetooth |
